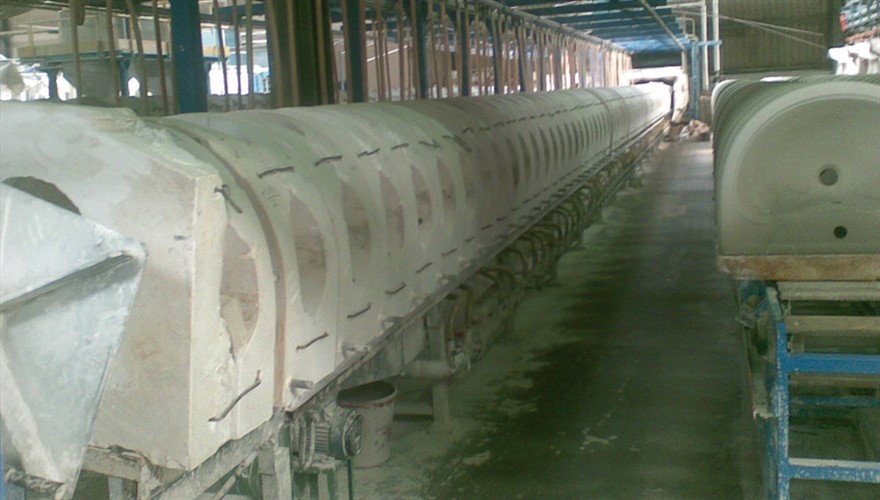

The machine is made by coupling online forms of 60 seats. The coupling can be either in length or width. If you plan to apply a dryer, you should create a set of coupled machines in length. The moulds are closed horizontally pack.
The module consists of:
- Support bench moulds at fixed inclination with push heads on the same bench and track for sliding bogies;
- Movable units equipped with a release system from fixing on the bench;
- Oleo-dynamic pressures mounted on the moving heads, each consisting of four cylinders with the oscillating head adaptive and relative pressurization pump.
- Truck for the furniture in equal in number to moulds assembled;
- Casting plant using PVC pipes, supply and distribution valves, stainless steel tank and accessories to use (taps, probes etc.).
- Discharge plant with side channel/s blowers and adjustable pressure relief valve/s.
- Electrical system with switchboard, protection and control casting cycle; it has an inverter to make sure and fluid demoulder movements.
- Under-mould blow system composed by a centrifugal fan and an inflatable flex hole hose.
Deposit bench
Not expected because, normally, we use carts to store pieces.
Facilitator of demoulding
Composed of a small roller with manual lifting of a few centimetres, which acts as a support truck for the stripping of plaster.
Dryers (see overview)
The dryer is available upon request, which can be mounted on the machine to make a daily double casting. Usually just the blower from under-moulds, supplied, in order to achieve a second casting. The dryer is used only if the slip is particularly thick and needs time high.
Permitted Uses
Casting basins of medium / small, simple form with low quality requirements.
