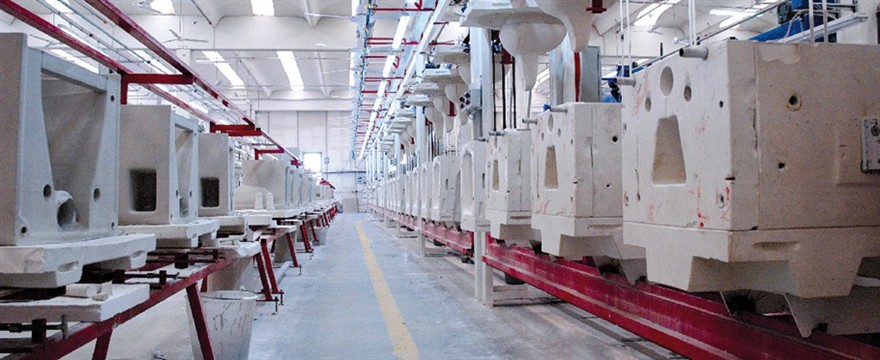

The machine is made by coupling modules of 4 seats into groups by double sided from 32+32 to 40+40 seats. The coupling can be either in length or width. If you plan to apply a dryer, you should create a set of coupled machines in length. For economy, the coupling length can reuse across multiple transformers counters, staggered appropriately casting times. The moulds are closed by the machine vertically and horizontally by bracing.
The module consists of::
- Supporting bench moulds reclining electrically
- Demoulder for pieces automatic type with electric motors and actuators driven by an inverter (LEM) allows the extraction and rotation of the mould
- Casting plant using PVC piping, valves and power distribution layer stainless steel tanks and accessories for use (taps, probes etc.).
- Empty plant with side channel blowers and adjustable pressure valve.
- Electric control panel, protection and control cycle casting.
Deposit Bench
Equipped with plans sliding wear and heat distribution pipes (on request).
Dryers (see overview)
The dryer is available upon request, can be mounted on the machine to make a daily double casting. Includes the distribution system under the deposit bench.
Permitted Uses
Casting of toilets and bidets with foot or suspended, after the preparation of moulds suitable for mounting the chassis and lock with key lock between the pieces. Recommended for all pieces of allowing particular foot up and turn or tilt the free press at all stages where it is closed (pouring, emptying, consolidation).
Limits
There remains a need to have a demoulder LEM type to release piece and then the magnetic plugs, because the plugs must be fitted with internal magnets
